Key Takeaways
- High-bandwidth oscilloscopes (above 200MHz) are essential for high-frequency electronics but come with higher price tags.
- Portability is a key advantage for fieldwork, but compact models often sacrifice some measurement precision or screen size.
- Multifunction units combining oscilloscopes with multimeters or signal generators can save space and money for versatile testing.
- USB-connected and handheld scopes offer great value for hobbyists and on-the-go troubleshooting, yet may lack advanced features.
- Choosing the right scope involves balancing bandwidth, sample rate, display quality, and ease of use based on your specific applications.
| oscilloscopes for electronics work | Bandwidth | Sampling Rate | Display | Channels |
|---|---|---|---|---|
| 2-in-1 Handheld Oscilloscope M | 1MHz | 2.5MS/s | 2.4" Backlit | — |
| FNIRSI 2C53P Handheld 2CH Osci | 50 MHz | 250 MS/s | 4.3-inch IPS touch screen | 2 |
| FNIRSI 2C53T Upgraded Handheld | 50 MHz | 250 MS/s | 2.8 inch LCD | — |
| FNIRSI DPOS350P 4-in-1 Handhel | 350 MHz | 1 GSa/s | 7-inch touchscreen | — |
| Hantek 1008C+HT201+HT30A+HT307 | — | 2.4MSa/s | — | 8 |
| Hantek DSO2D50 Digital Oscillo | 500 MHz | 2 GSa/s | 7-inch LCD | 2 |
| HANMATEK 110MHz Bandwidth Digi | 110 MHz | 500 MS/s | 7-inch TFT-LCD | 2 |
| FNIRSI Upgraded 2-in-1 DSO-510 | 10 MHz | 48 MS/s | 2.8-inch TFT | — |
| RIGOL Digital Oscilloscope DS1 | — | — | 7" WVGA (800×480) | 2 |
| FNIRSI DSO152 Handheld Oscillo | 200 KHz | 2.5 MS/s | 2.8-inch TFT | — |
| 3 in 1 Handheld Digital Oscill | 12MHz | 50MSa/s | — | — |
| Hantek DSO2C15 Digital Storage | 150MHz | — | — | 2 |
| FNIRSI 1013D Plus Oscilloscope | 100 MHz | 1 GSa/s | 7-inch TFT LCD | 2 |
More Details on Our Top Picks
2-in-1 Handheld Oscilloscope Multimeter – 1MHz Bandwidth, 2.5MS/s Sampling Rate, 2.4″ Backlit Display, Includes Probes
This compact device excels in portability and simplicity, combining a basic oscilloscope with a multimeter, making it well-suited for beginners and hobbyists. Compared to the FNIRSI 2C53T, it offers a much lower bandwidth, limiting high-frequency measurements but compensates with ease of use and immediate waveform visualization. Its 1MHz bandwidth restricts detailed analysis of fast signals, but the auto-ranging multimeter adds versatile measurement functions for general troubleshooting. The device’s battery-powered operation and backlit display support on-the-spot diagnostics, though the single-channel scope limits more complex waveform analysis. It’s ideal for electronics students or DIYers who need quick, portable measurements without the complexity of higher-end models.
Pros:- Combines oscilloscope and multimeter in one portable unit
- Easy to operate with auto-ranging and waveform visualization
- Battery-powered with backlit display for field use
- Includes safety features like overcurrent fuse
Cons:- Limited bandwidth restricts high-frequency measurements
- Single-channel scope may not suit complex signal analysis
- Requires battery replacements over time
Best for: Electronics beginners, students, or DIY hobbyists needing portable, straightforward testing tools
Not ideal for: Professionals working with high-frequency signals or complex, multi-channel measurements
- Bandwidth:1MHz
- Sampling Rate:2.5MS/s
- Display:2.4″ Backlit
- Voltage Measurement:up to 600V AC/DC
- Current Measurement:up to 10A
- Power Source:3 AAA batteries
Our verdict“This device is best suited for beginners and hobbyists who value portability and simplicity over high-frequency capabilities.”
FNIRSI 2C53P Handheld 2CH Oscilloscope Multimeter with DDS Signal Generator and Touch Screen
The FNIRSI 2C53P offers a compelling balance of portability and advanced features, including a 2-channel oscilloscope, multimeter, and a 50 MHz bandwidth, making it suitable for field technicians and hobbyists needing more detailed measurements. Its 250 MS/s sampling rate ensures good accuracy, especially compared to the 2-in-1 Multimeter, which lacks dual channels and signal generation. The 4.3-inch touch screen simplifies operation, and supporting FFT analysis enhances its versatility. However, the 10 MHz maximum waveform output limits its use for high-frequency or RF projects, and battery life around 4 hours can be restrictive during extended field work. This device is best for users who need a portable, multi-functional instrument for moderate-frequency applications.
Pros:- Portable with an intuitive touch screen interface
- Combines oscilloscope, multimeter, and DDS signal generator
- Supports comprehensive signal analysis including FFT
- Good for moderate-frequency measurement tasks
Cons:- Limited to 50 MHz bandwidth, restricting RF applications
- Battery life of about 4 hours may hinder long sessions
- Waveform output frequency capped at 10 MHz
Best for: Electronics technicians or hobbyists requiring a portable oscilloscope with integrated signal generation and easy interface
Not ideal for: Professionals or high-frequency RF engineers needing bandwidths above 50 MHz or longer battery life
- Channels:2
- Bandwidth:50 MHz
- Sampling Rate:250 MS/s
- Display:4.3-inch IPS touch screen
- Waveform Output Frequency:up to 10 MHz
- Battery:4000 mAh
Our verdict“Ideal for field users who need a versatile, portable oscilloscope with integrated signal capabilities for moderate-frequency work.”

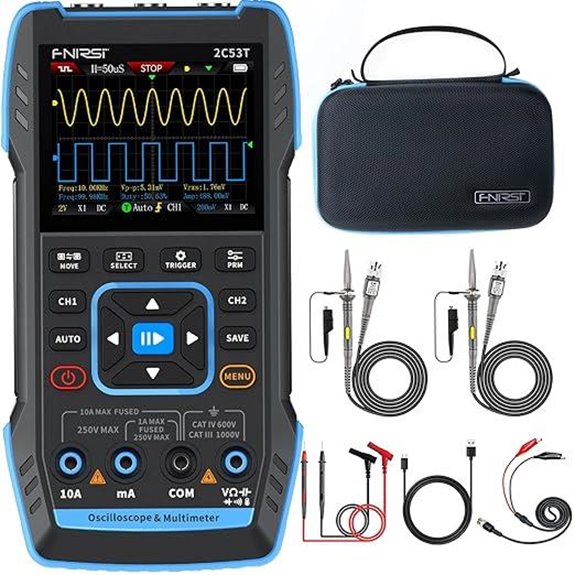

FNIRSI 2C53T Upgraded Handheld Oscilloscope, 50MHz Bandwidth, 3-in-1 Digital Multimeter, DDS Signal Generator, 250MS/s Sampling Rate
The FNIRSI 2C53T stands out for its multi-functionality, combining a 50MHz bandwidth oscilloscope with a multimeter and signal generator, suitable for students and hobbyists seeking accuracy and versatility. Its 250MS/s sampling rate rivals higher-end models like the FNIRSI 2C53P, but with a slightly more compact LCD, which could challenge detailed waveform viewing. Its 1K-point record depth supports better waveform analysis, and high-voltage protection enhances safety. The device’s 6-hour battery life makes it more suitable for extended use than some alternatives. While its 50MHz bandwidth limits high-frequency testing, it provides enough precision for educational projects and moderate troubleshooting, making it a solid choice for learners and hobbyists wanting professional features in a portable package.
Pros:- Multi-functional device with oscilloscope, multimeter, and signal generator
- High sampling rate and record depth for accurate waveform capture
- Built-in high-voltage protection
- Portable with up to 6 hours battery life
Cons:- Limited to 50 MHz bandwidth, not suitable for high-frequency RF work
- Small LCD display can make detailed waveform analysis challenging
- Maximum signal output frequency of 50 kHz may limit some signals
Best for: Students, educators, and hobbyists needing a multi-function scope with decent bandwidth and high accuracy
Not ideal for: Professionals working with RF or high-frequency digital signals requiring bandwidths above 50 MHz
- Bandwidth:50 MHz
- Sampling Rate:250 MS/s
- Record Depth:1K points
- Max Voltage:400 V
- Display:2.8 inch LCD
- Battery:3000 mAh
Our verdict“Best suited for students, educators, and hobbyists seeking a versatile, portable instrument for educational and moderate troubleshooting tasks.”

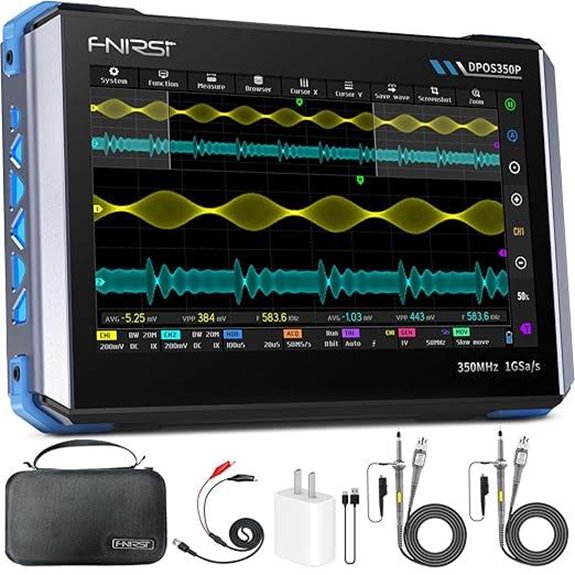

FNIRSI DPOS350P 4-in-1 Handheld Oscilloscope with Spectrum and Frequency Response Analyzer, DDS Generator, 7″ Touch Screen, 350MHz
The FNIRSI DPOS350P excels in its multi-faceted approach, combining a 350MHz oscilloscope, spectrum analyzer, frequency response analyzer, and DDS generator within a portable form. Its 1 GSa/s sampling rate supports detailed waveform analysis, outperforming models like the 2C53T in high-frequency capability. The large 7-inch touchscreen enhances usability, although the device’s complexity may present a learning curve for newcomers. The spectrum and frequency response features make it ideal for advanced diagnostics, RF testing, and research. Its 8,000 mAh battery supports extended work sessions, but the weight and price could be barriers for casual users. This instrument is tailored for professionals and serious hobbyists demanding comprehensive analysis in a portable package.
Pros:- High bandwidth and sampling rate for detailed high-frequency analysis
- Versatile 4-in-1 device with spectrum and frequency response analysis
- Large, high-resolution touchscreen for intuitive operation
- Long-lasting battery supports extended field use
Cons:- Complex interface may require a learning curve
- Heavy and potentially cumbersome for prolonged handheld use
- High price point may be prohibitive for casual users
Best for: Electronics engineers, RF specialists, and advanced hobbyists requiring high-frequency analysis and multifunctionality
Not ideal for: Beginners or casual users who need only basic oscilloscope functions or prefer a lightweight, simple device
- Bandwidth:350 MHz
- Sampling Rate:1 GSa/s
- Display:7-inch touchscreen
- FFT Length:4K–32K
- Waveform Storage:500 waveforms
- Battery Capacity:8000 mAh
Our verdict“Ideal for professionals and advanced hobbyists needing high-frequency, multi-analytical capabilities in a portable format.”
Hantek 1008C+HT201+HT30A+HT307 PC USB 8-Channel Automotive Diagnostic Digital Oscilloscope
The Hantek 1008C+ offers a comprehensive solution for automotive technicians and electronics enthusiasts, with 8 channels and a 12-bit resolution that enable detailed multi-point diagnostics. Its 250KHz bandwidth is sufficient for most automotive signals but falls short for high-frequency digital work, unlike the high-bandwidth models like the FNIRSI DPOS350P. The USB connectivity simplifies data transfer and analysis on a PC, which is ideal for detailed troubleshooting and data logging. Its 20 automatic measurement modes streamline diagnostics, but the device’s reliance on Windows limits its flexibility. This scope makes the most sense for automotive troubleshooting and multi-channel general-purpose testing where high-frequency signals are less critical.
Pros:- Eight channels for complex multi-point testing
- High-resolution 12-bit measurements and 4K memory depth
- Multiple automatic measurement modes for quick diagnostics
- USB connectivity for seamless PC data analysis
Cons:- Limited to Windows OS, restricting cross-platform use
- Frequency range may be insufficient for high-frequency digital signals
- Requires some technical knowledge for optimal operation
Best for: Automotive technicians and hobbyists needing multi-channel diagnostics and easy data management
Not ideal for: Electronics professionals working with high-speed digital circuits or RF signals above 250KHz
- Channels:8
- Resolution:12 bits
- Memory Depth:4K
- Sampling Rate:2.4MSa/s
- Frequency Range:0-250KHz
- Connectivity:USB 2.0
Our verdict“Best for automotive diagnostics and multi-channel troubleshooting where high-frequency testing is not required.”
Hantek DSO2D50 Digital Oscilloscope 500MHz, Dual Channels, 2GSa/s, 7-inch LCD
The Hantek DSO2D50 stands out for its impressive 500 MHz bandwidth and 2 GSa/s sampling rate, making it ideal for detailed analysis of high-frequency signals. Compared with the RIGOL DS1202Z-E, it offers more bandwidth and a broader set of features like protocol decoding and an arbitrary waveform generator, catering to professional electronics testing. However, its complex setup and large size can challenge beginners and reduce portability. This scope is perfect for experienced users needing comprehensive signal analysis in a lab or workshop, but it may overwhelm those just starting out or requiring a lightweight device.
- High bandwidth and sampling rate for detailed analysis
- Includes waveform generator and protocol decoding for versatile testing
- User-friendly interface with multiple languages
- Complex setup may intimidate beginners
- Large size limits portability
Verdict: Best suited for professionals and advanced hobbyists demanding high performance and feature-rich testing.
Pros:- High bandwidth and sampling rate for detailed signal clarity
- Includes advanced features like protocol decoding and waveform generation
- Supports remote control and multiple measurement functions
Cons:- Setup complexity may be challenging for newcomers
- Size and weight reduce portability for field use
Best for: Electronics engineers and advanced hobbyists needing high-frequency signal analysis with versatile features
Not ideal for: Beginners or those requiring a portable, plug-and-play device for simple troubleshooting
- Bandwidth:500 MHz
- Channels:2
- Sampling Rate:2 GSa/s
- Storage Depth:80 Kpts (single-channel), 40 Kpts (dual-channel)
- Display:7-inch LCD
- Protocols:UART, LIN, CAN, SPI, IIC
Our verdict“This scope is ideal for professionals who need detailed, high-frequency analysis in a stable environment.”
HANMATEK 110MHz Bandwidth Digital Oscilloscope with 2 Channels and 7-Inch TFT-LCD Display
The HANMATEK 110MHz scope offers a solid balance of features and affordability, making it a good step up from basic models like the FNIRSI DSO152. Its 110 MHz bandwidth and 500 MS/s sampling rate support detailed analysis of common signals, while the large 7-inch color display simplifies waveform viewing. Unlike the FNIRSI DSO510 with 10 MHz bandwidth, this model handles higher-frequency signals better. However, its setup can still be somewhat technical, and lacking a built-in battery limits its field use. It’s well-suited for intermediate hobbyists or students who want more capability without a hefty price tag and are okay with a wired power source.
- Good balance of bandwidth and ease of use
- Large, colorful display for clear waveform viewing
- Supports waveform storage and USB data transfer
- Setup may require technical knowledge
- No built-in battery limits portability
Verdict: An excellent choice for users upgrading from basic models seeking more detailed signal analysis at a reasonable price.
Pros:- Decent bandwidth and sampling rate for common projects
- Large color display for easy waveform interpretation
- Supports data transfer via USB for analysis and storage
Cons:- Setup can be complex for users without prior experience
- No onboard battery limits mobile use
Best for: Intermediate hobbyists and students needing reliable performance for electronics diagnostics
Not ideal for: Field technicians or outdoor users needing portability and battery operation
- Bandwidth:110 MHz
- Channels:2
- Sampling Rate:500 MS/s
- Display:7-inch TFT-LCD
- Waveform Storage:≥10K points
- Power:DC
Our verdict“Ideal for hobbyists and students seeking a step-up scope with a large display and decent performance.”
FNIRSI Upgraded 2-in-1 DSO-510 Oscilloscope with 10X Probe
The FNIRSI DSO-510 excels as a compact, portable scope with a modest 10 MHz bandwidth and 48 MS/s sampling rate, designed for quick diagnostics and outdoor use. Its small 2.8-inch display and integrated battery make it ideal for on-the-go troubleshooting, especially in automotive or field environments. Compared to larger, more capable scopes like the HANMATEK 110MHz, it sacrifices bandwidth and detail for portability and ease of use. This tradeoff makes it less suitable for high-frequency applications but perfect for basic testing and quick checks. The limited waveform output frequency of 50 KHz and shorter battery life are drawbacks for prolonged or high-frequency testing.
- Highly portable with built-in rechargeable battery
- Quick auto measurement simplifies testing
- Includes 10X probe for better signal accuracy
- Limited bandwidth restricts high-frequency testing
- Shorter battery life limits extended use
Verdict: Best suited for field technicians or hobbyists performing simple, low-frequency diagnostics outside the lab.
Pros:- Compact, lightweight design for portability
- Built-in rechargeable battery for outdoor use
- Auto measurement feature speeds up diagnostics
Cons:- Limited bandwidth unsuitable for high-frequency signals
- Battery life of around 4 hours may be restrictive
Best for: Automotive technicians and field engineers needing a lightweight, easy-to-carry scope for basic signals
Not ideal for: Users requiring high-frequency analysis or detailed waveform capture for complex projects
- Bandwidth:10 MHz
- Sampling Rate:48 MS/s
- Display:2.8-inch TFT
- Battery:1000 mAh (approx. 4 hours)
- Maximum Output Frequency:50 KHz
- Dimensions:99×68.3×19.5mm
Our verdict“Perfect for quick, simple measurements in the field rather than detailed laboratory analysis.”
RIGOL Digital Oscilloscope DS1202Z-E 200 MHz 2-Ch 1 GSa/s 24 Mpts 7″ Display
The RIGOL DS1202Z-E combines a 200 MHz bandwidth with an impressive 1 GSa/s sampling rate and deep 24 Mpts memory, making it well-suited for capturing complex signals and debugging serial interfaces. Its large 7-inch display provides clarity, especially compared with smaller handhelds like the FNIRSI DSO152, and its serial decoding capabilities support troubleshooting UART, I2C, and SPI effectively. While it is heavier and bulkier than portable models, this tradeoff benefits users who need detailed, long-duration captures and a comprehensive interface for electronics debugging. Less ideal for quick field diagnostics, it excels in fixed lab setups.
- High sample rate and deep memory for complex signals
- Multiple serial decoding options for troubleshooting
- Large, high-resolution display for clarity
- Heavier and less portable than handheld models
- More complex for beginners without prior experience
Verdict: Best for professionals and students focused on detailed debugging and long-term signal analysis.
Pros:- Deep memory and high sample rate for detailed captures
- Serial decoding for troubleshooting communication protocols
- Multiple connectivity options for remote operation
Cons:- Bulky and heavier, less portable for field use
- Steeper learning curve for beginners
Best for: Electronics developers and educators needing deep data capture and serial decoding features
Not ideal for: Field technicians or hobbyists requiring lightweight, portable devices for quick inspections
- Frequency:200 MHz
- Channels:2
- Sample Rate:1 GSa/s
- Memory:24 Mpts
- Display:7″ WVGA (800×480)
- Serial Decode:UART, I2C, SPI
Our verdict“Ideal for detailed debugging and educational use where size and weight are less critical.”

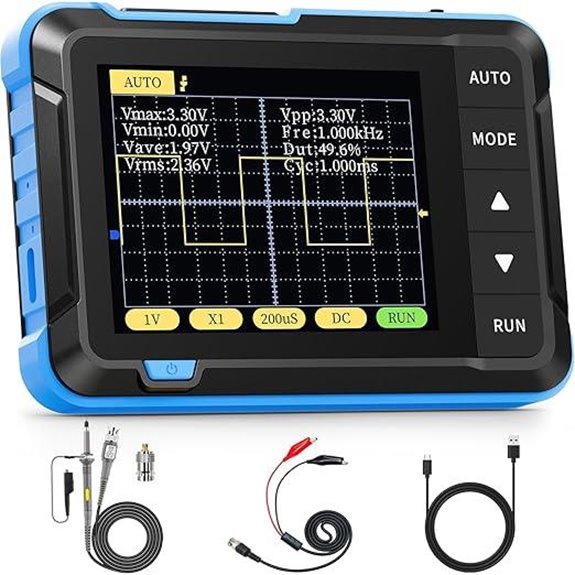

FNIRSI DSO152 Handheld Oscilloscope – 2.8″ TFT Digital Kit, 200KHz Bandwidth, 2.5MS/s Sampling Rate
The FNIRSI DSO152 offers a compact, handheld solution with a 200 KHz bandwidth and 2.5 MS/s sampling rate, making it suitable for simple diagnostics and educational demonstrations. Its 2.8-inch display and auto measurement functions simplify operation for beginners or field technicians. While this device is significantly limited compared to larger scopes like the HANMATEK 110MHz, its small size and rechargeable battery make it perfect for quick checks and basic troubleshooting in tight spaces. The limited bandwidth and shorter battery life are tradeoffs for portability, meaning it’s not suitable for high-frequency or long-duration testing.
- Highly portable and lightweight for field use
- Auto measurement feature speeds setup
- Rechargeable battery supports outdoor operation
- Limited bandwidth restricts high-frequency testing
- Battery life around 4 hours may require frequent recharging
Verdict: An excellent choice for basic, portable diagnostics where high-frequency resolution is not required.
Pros:- Portable design for on-the-go troubleshooting
- Auto measurement for quick results
- Built-in rechargeable battery for outdoor use
Cons:- Limited bandwidth unsuitable for high-frequency signals
- Battery life may be restrictive for extended use
Best for: Field service technicians and students needing a lightweight, easy-to-carry scope for low-frequency signals
Not ideal for: Users requiring high-frequency signal analysis or detailed waveform capture in complex projects
- Bandwidth:200 KHz
- Sampling Rate:2.5 MS/s
- Display:2.8-inch TFT
- Battery:1000 mAh (~4 hours)
- Voltage Measurement:up to 800 VPP
- Dimensions:99×68.3×19.5mm
Our verdict“Best suited for simple, quick diagnostics in the field rather than detailed lab analysis.”
3 in 1 Handheld Digital Oscilloscope Multimeter – 12MHz Bandwidth, 50MSa/s Sampling Rate, Signal Generator
This 3-in-1 device excels in providing a compact, all-in-one solution for basic electronics troubleshooting, combining oscilloscope, multimeter, and signal generator functionalities in a single lightweight package. Compared to the FNIRSI 1013D Plus, its integrated approach offers greater versatility for field repairs without sacrificing too much portability. However, its 12MHz bandwidth limits high-frequency testing, making it unsuitable for RF or high-speed digital signals. The automatic measurement features and simple controls make it accessible for beginners, yet the small display and basic features fall short for detailed analysis or professional-grade work.
bestFor: Hobbyists, students, or technicians needing a portable, multifunction device for general troubleshooting.
notIdealFor: Professionals requiring high-frequency testing or detailed signal analysis in complex circuits.
pros: Combines oscilloscope, multimeter, and signal generator functions; Easy-to-use with automatic measurements; Long battery life supports extended portable use; Compact and lightweight design enhances portability.
cons: Limited bandwidth of 12MHz restricts high-frequency applications; Small display hampers detailed readings; Basic features may not satisfy advanced professional needs.
Verdict: A versatile choice for portable, low-frequency testing but not suited for high-speed or detailed analysis work.
- Bandwidth:12MHz
- Sampling Rate:50MSa/s
- Display Counts:6000
- Battery Capacity:1500mAh
- Charging:Type-C
- Dimensions:180*83*32mm
- Weight:250g
Our verdict“Best for Portable Multi-Function Convenience — a strong pick in this lineup.”
Hantek DSO2C15 Digital Storage Oscilloscope 150MHz Bandwidth, 2 Channels, 1GSa/s, 8M Memory Depth with High Voltage Probe
The Hantek DSO2C15 stands out for its solid 150MHz bandwidth and dual-channel capability, making it suitable for communication, embedded, and aerospace projects. In comparison with the FNIRSI 1013D Plus, it offers higher frequency range and more advanced features like multiple trigger modes and serial decoding, which are vital for complex signals. Its 8M memory depth supports detailed waveform analysis, but its 6.24-pound weight and larger footprint make it less convenient for mobile use. While not ideal for ultra-high-speed digital signals, it provides a well-rounded package for most medium-frequency applications.
bestFor: Electronics professionals working on communication, embedded systems, or aerospace projects needing detailed analysis.
notIdealFor: Field technicians requiring ultra-portable equipment or testing at frequencies above 150MHz.
pros: Supports multiple trigger modes and serial protocol decoding; Suitable for complex signal analysis; 150MHz bandwidth covers most common applications; Includes high voltage probe for safety and versatility.
cons: Limited to 150MHz, restricting very high-frequency testing; Heavier and less portable than handheld alternatives; Higher complexity may overwhelm beginners.
Verdict: An excellent choice for technical users needing robust features within a portable size, but not for ultra-high-frequency or ultra-lightweight needs.
- Bandwidth:150MHz
- Channels:2
- Sample Rate:1GSa/s
- Memory Depth:8M
- Included Accessories:High Voltage Probe
Our verdict“Best for Versatile Technical Applications — a strong pick in this lineup.”
FNIRSI 1013D Plus Oscilloscope – Portable Handheld 2-Channel 100MHz Bandwidth Touchscreen
The FNIRSI 1013D Plus combines portability with a 7-inch touchscreen, offering a user-friendly interface for detailed analysis of analog and digital signals. Its 100MHz bandwidth and 1GSa/s sampling rate make it suitable for general electronics troubleshooting and educational purposes. Compared with the 3-in-1 device, it provides higher bandwidth and a clearer display, but only supports two channels, limiting simultaneous multi-signal analysis. The 4-hour battery life can be restrictive during extended field sessions, and some users may need time to become familiar with its touchscreen controls for maximum efficiency.
bestFor: Field engineers, students, or hobbyists who need a portable oscilloscope with a high-resolution display for detailed signal examination.
notIdealFor: Complex, multi-channel digital systems or extended testing sessions without recharge options.
pros: Portable and lightweight for easy field use; High-resolution touchscreen simplifies operation; High-voltage protection up to 400V; Supports waveform storage and detailed measurement functions.
cons: Only two channels limit complex testing; Battery life of 4 hours may require frequent recharging; Learning curve for touchscreen controls.
Verdict: An excellent portable option for detailed signal analysis on the go, but not ideal for multi-channel or long-duration testing.
- Channels:2
- Bandwidth:100 MHz
- Sampling Rate:1 GSa/s
- Display:7-inch TFT LCD
- Battery Life:4 hours
- Storage:1 GB
Our verdict“Best for Field-Ready High-Resolution Testing — a strong pick in this lineup.”
How We Picked
Our evaluation focused on performance, usability, build quality, and value within the context of electronics work. We prioritized models offering sufficient bandwidth and sample rate to handle typical projects, while also considering portability for field use. Ease of operation, display clarity, and connectivity options played key roles, as well as durability and user interface design. The ranking reflects a combination of technical specs, user feedback, and versatility, aiming to match different types of buyers—from hobbyists to professionals—who need reliable, efficient testing tools without unnecessary complexity or expense.Factors to Consider When Choosing Oscilloscopes For Electronics Work
Selecting the right oscilloscope for electronics work requires understanding your specific needs and how different features impact usability. Here are key factors to consider to make an informed choice that balances performance and budget.Bandwidth and Sample Rate
Bandwidth determines the highest frequency signal the scope can accurately visualize, making it critical for high-speed digital or RF work. A scope with at least 100MHz bandwidth suits most hobbyist and moderate professional projects, while higher bandwidths (200MHz or more) are better for advanced applications. Sample rate influences the accuracy of capturing fast-changing signals; a higher rate (1GSa/s or more) reduces the risk of aliasing and provides clearer waveforms. Matching bandwidth and sample rate to your typical projects helps prevent underperforming tools or overspending on unnecessary specs.
Portability and Size
If your work involves field repairs or on-site troubleshooting, a portable or handheld scope is invaluable. These models typically trade some advanced features for compactness and power efficiency. Conversely, benchtop models often provide larger screens and more measurement options, ideal for detailed analysis in a lab setting. Consider where you’ll use the scope most often and how much space you have—this guides whether portability or a larger display takes priority.
Ease of Use and Interface
Intuitive controls, clear displays, and responsive interfaces significantly reduce setup time and frustration. Touchscreens and user-friendly menus can streamline complex measurements, especially for beginners. More advanced units might offer deeper customization but can require a learning curve. Think about your familiarity with oscilloscopes and whether you prefer simple controls or are comfortable navigating complex software—this impacts your overall productivity and satisfaction.
Connectivity and Expandability
Modern oscilloscopes often include USB, Wi-Fi, or Ethernet interfaces for data transfer and remote control. These features are beneficial for documenting results or integrating with other test equipment. Some models support firmware upgrades or additional modules, extending their longevity and functionality. Assess whether these connectivity options align with your workflow, especially if you plan to incorporate the scope into a larger testing setup or need remote operation capabilities.
Price and Value
Balance your budget with the features you require. While budget models cover basic measurement needs, investing a bit more can provide higher bandwidth, better display quality, and longer-term durability. High-end scopes often come with advanced triggers, multiple channels, and extensive memory, which are valuable for complex projects. Be wary of very cheap options that might lack accuracy or reliability—sometimes paying slightly more yields significantly better results and longevity.
Frequently Asked Questions
Can I use a handheld oscilloscope for high-frequency digital signals?
Handheld oscilloscopes, like the FNIRSI DSO152, are generally limited to lower bandwidths (around 200KHz to 50MHz) and may struggle with high-frequency digital signals. For signals in the hundreds of megahertz range, a benchtop scope with sufficient bandwidth and sample rate is essential to avoid aliasing and inaccurate readings. However, for basic troubleshooting, hobbyist projects, or low-frequency signals, portable models can be quite effective and offer the convenience of mobility.
Is a higher sample rate always better for electronics work?
Higher sample rates enable more accurate waveform capture, especially for fast digital signals or RF applications. However, beyond a certain point, increasing the sample rate yields diminishing returns for typical electronics projects. For most digital and analog work, a sample rate of 1GSa/s or higher provides clear signals without excessive data overload. It’s important to match the sample rate with your bandwidth—if the bandwidth is low, an extremely high sample rate might not provide additional benefit.
Should I prioritize a scope with multiple channels?
Multiple channels allow simultaneous measurement of different signals, which is valuable for analyzing interactions within circuits. For complex projects involving multiple signals, a scope with at least two channels is advisable. However, if your work mainly involves single signals or simple troubleshooting, a dual-channel scope might be sufficient. More channels often mean higher cost and complexity, so consider your typical use cases before investing in models with more than two channels.
How important is display size and quality?
A larger, high-resolution display improves waveform visibility and makes measurements easier, especially during detailed analysis. Smaller screens can be more portable but may require zooming or scrolling to view signals clearly. If you often work in environments with poor lighting or need to analyze complex waveforms, prioritize a scope with a sizable, sharp display. For casual or occasional use, a smaller screen might suffice, but it can slow down troubleshooting and accuracy.
When should I consider investing in a high-end oscilloscope?
High-end oscilloscopes are justified when working with high-frequency RF signals, complex digital systems, or requiring advanced analysis tools like deep memory, complex trigger options, and high bandwidth. These models also tend to offer better build quality, more reliable long-term operation, and expanded connectivity options. If your work involves frequent, demanding testing or professional development, investing in a premium scope can improve efficiency, accuracy, and future-proof your setup. For hobbyists or occasional users, more modest models often suffice.
Conclusion
For most electronics enthusiasts and professionals, the RIGOL DS1202Z-E emerges as the best overall choice thanks to its excellent balance of features and affordability. Hobbyists or those on a tight budget will find the FNIRSI DSO152 a practical portable option, while professionals working with high-frequency signals should consider the Hantek DSO2D50 or Hantek 1008C+HT201+HT30A+HT307 for their advanced capabilities. Beginners benefit from user-friendly, straightforward models like the FNIRSI 1013D Plus, which simplifies setup and operation. Ultimately, your decision should hinge on your specific projects, frequency requirements, and whether portability or feature depth is your priority.
Pool season Picks
robotic pool cleaners
As an affiliate, we earn on qualifying purchases.
